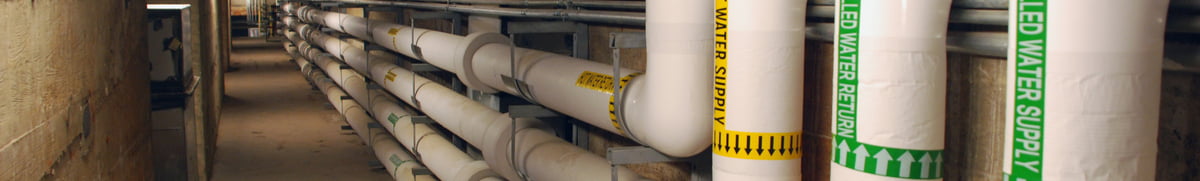

When it comes to working safely around pipes, clarity is everything. Imagine trying to identify what’s flowing through a pipe, whether it’s water, chemicals, or steam, without a clear label. Sounds risky, right? That’s exactly the problem that the ANSI/ASME A13.1 standard, Scheme for the Identification of Piping Systems, is designed to solve. This standard provides a proven system for clear and consistent pipe identification, helping to eliminate guesswork, improve emergency response, and ensure safer operations across various settings, from industrial plants to public buildings.
In this blog, we will explore the ANSI/ASME A13.1 pipe labeling requirements, showing you exactly what needs to be done to ensure compliance and safety in your facility. You’ll also learn about the history and evolution of the standard, giving you a deeper understanding of how it has adapted over time to keep pace with evolving industrial and safety demands. Let’s get started!
The Key Requirements of the ANSI/ASME Pipe Marking Standard
The ANSI/ASME A13.1 standard is essential for clear and effective pipe marking in industrial and commercial settings. It ensures that every pipe is properly labeled to identify its contents, hazards, and flow direction, which is crucial for worker safety and efficient operations. Let’s look at the key requirements of this pipe marking standard:
Legend Requirements
The ANSI/ASME A13.1 standard requires that each pipe marking include a legend that describes the content of the piping system. The legend should have a text to clearly identify the pipe contents, like water, steam, or chemicals, and should include additional details like temperature and pressure where needed for safety. The idea is to keep it brief, informative, and easy to understand.
As per the ANSI/ASME A13.1 pipe labeling standard, legends should use arrows in conjunction with the text to show the direction of material flow within the pipeline. If the contents of a pipe can flow in both directions, the standard requires that arrows in both directions be displayed. The standard also allows the inclusion of Globally Harmonized System (GHS) pictograms as part of the legend to identify chemical hazards more easily.
Color Requirements
The ANSI/ASME A13.1 pipe marking standard uses color-coding as a secondary means of identification to classify the general hazard or type of material within the pipe. This requires a color field or background color and a contrasting legend color for readability. The standard specifies six primary color combinations and allows for four user-defined colors for materials not covered by the standardized combinations.
Apart from the ten color combinations for active pipeline labeling, the ANSI/ASME A13.1 standard requires a safety white background with black letters for marking abandoned pipelines.
Placement Requirements
The ANSI/ASME A13.1 standard requires strategically placing labels at critical points and regular intervals along the piping system to ensure maximum visibility. This includes positioning labels at changes in direction, near valves, and at equipment connections, while maintaining clear sightlines and avoiding obstructions.
Letters Size and Type Requirements
Under the ANSI/ASME A13.1 standard, pipe labels must meet specific size and typeface requirements to ensure visibility and legibility. The minimum height for letters on a pipe marker is determined by the outside diameter of the pipe, including any insulation. Detailed size requirements for each pipe diameter are given in the free pipe marking guide.
As for the letter type is concerned, the standard recommends using sans-serif gothic bold lettering. This typeface is preferred for its high readability and strong contrast, ensuring the labels are easily seen and understood.
These key requirements outlined by the ANSI/ASME A13.1 pipe labeling standard ensure that pipes are marked in a way that promotes safety, clarity, and ease of identification. Whether it’s the color-coding system for hazard classification, the clear legends indicating the contents and flow direction, or the proper placement and size of the labels, every element is designed to reduce risks and improve operational efficiency.
Now that we have covered the essential pipe marking requirements, it’s important to understand the history and evolution of the ANSI/ASME A13.1 standard. Over the years, this standard has been updated to keep pace with changing safety needs and regulatory requirements. Understanding its history not only helps clarify its importance but also highlights how it has continually evolved to improve safety practices. Let’s explore the journey of the ANSI/ASME A13.1 pipe marking standard and its significance in modern pipe marking.
The History and Evolution of ANSI/ASME A13.1 Pipe Marking Standard
The ANSI/ASME A13.1 standard has its roots in the growing industrial safety concerns of the mid-20th century. Before standardized pipe marking systems were established, workers often faced significant safety risks and confusion due to a lack of consistent identification. In response to these safety challenges, the American Standards Association, now ANSI, formed a committee to develop a uniform system for marking pipes in 1922, which led to the first publication of the ANSI/ASME A13.1 standard in 1928.
Over the years, the ANSI/ASME standard has been revised to reflect technological advancements and increasing safety needs. The 1950s revision expanded the scope to include the growing variety of materials transported in piping systems, and the standard was officially recognized as an American National Standard.
Looking at the recent history of the ANSI/ASME pipe labeling standard, the 2015 edition introduced GHS pictograms and included a definition for oxidizing materials, further improving the safety and clarity of pipe identification. Similarly, the latest revision, ASME A13.1-2023, brings several key updates:
- Scope and Definitions: Expanded definitions and scope, providing clearer guidelines for labeling.
- Legend Section: Enhanced instructions for identifying pipe contents.
- Color Coding: Updates to the color designation system to improve clarity.
- Flow Direction Icons: New graphics to indicate flow directions.
The 2023 version shifts the ANSI/ASME A13.1 pipe marking standard from periodic to continuous maintenance, ensuring that pipes are consistently marked as systems evolve. This ongoing evolution ensures that the standard remains relevant to modern industrial safety requirements.
The ANSI/ASME A13.1 standard has come a long way in ensuring that pipes are clearly and safely identified, significantly improving workplace safety and operational efficiency. With its ongoing evolution to address new materials, safety concerns, and industrial needs, this standard plays a crucial role in helping facilities stay compliant and reduce risk.
